Detalhes do produto:
|
| Número da peça: | PS9552-AX | Fabricante: | Cel |
|---|---|---|---|
| Descrição: | MOTORISTA 8DIP DA PORTA DE OPTOISO 5KV | Categoria: | Isoladores - bloqueie motoristas |
| Família: | Isoladores - bloqueie motoristas | Série: | NEPOC |
| Part Status | Active |
|---|---|
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Pulse Width Distortion (Max) | 300ns |
| Rise / Fall Time (Typ) | 100ns, 100ns |
| Current - Output High, Low | 2A, 2A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.65V |
| Current - DC Forward (If) (Max) | 25mA |
| Voltage - Supply | 15 V ~ 30 V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |

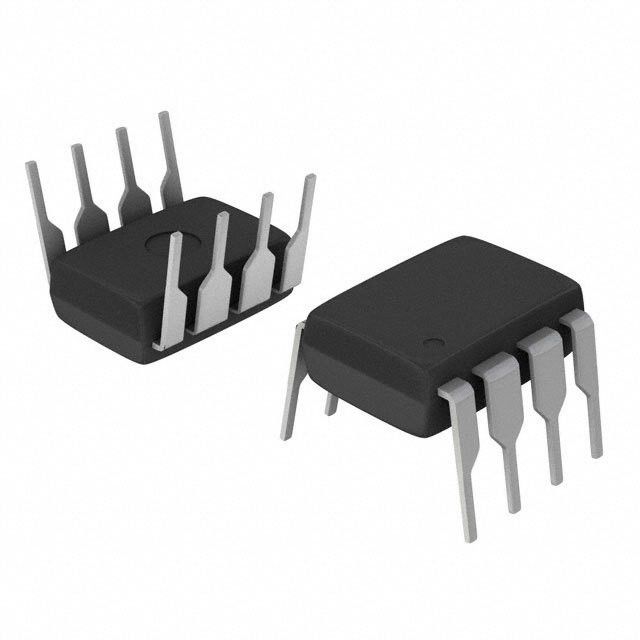

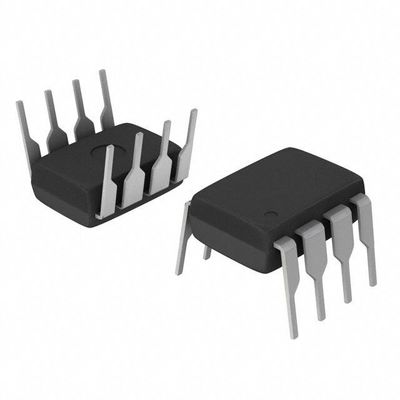

| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Approvals | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
